1. Exhibit

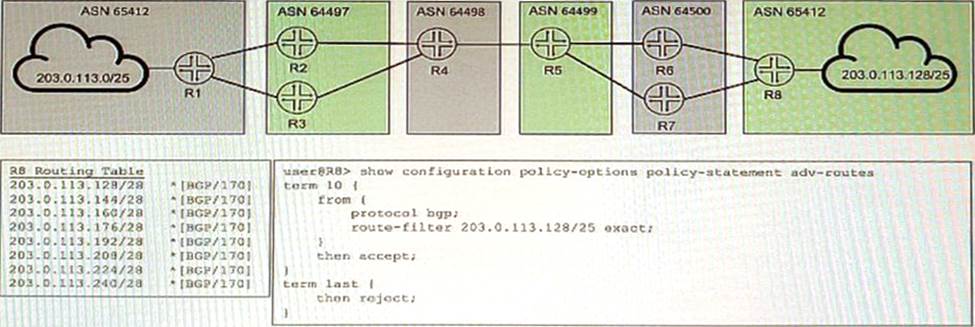

You are attempting to summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500. You implement the export policy shown in the exhibit and all routes from the routing table stop being advertised.

In this scenario, which two steps would you take to summarize the route in BGP? (Choose two.)

Remove the from protocol bgp command from the export policy.

Add the set protocols bgp family inet unicast add-path command to allow additional routes to the RIB tables.

Add the set routing-options static route 203.0.113.123/25 discard command.

Replace exact in the export policy with orlonger.

 Loading...

2. After a recent power outage, your manager asks you to investigate ways to automatically reduce the impact caused by suboptimal routing in your OSPF and OSPFv3 network after devices reboot.

Which three configuration statements accomplish this task? (Choose three.)

set protocols ospf overload timeout 900

set protocols ospf3 realm ipv4-unicast overload timeout 900

set protocols ospf overload

set protocols oapf3 overload timeout 900

set protocols ospf3 overload

 Loading...

3. Exhibit

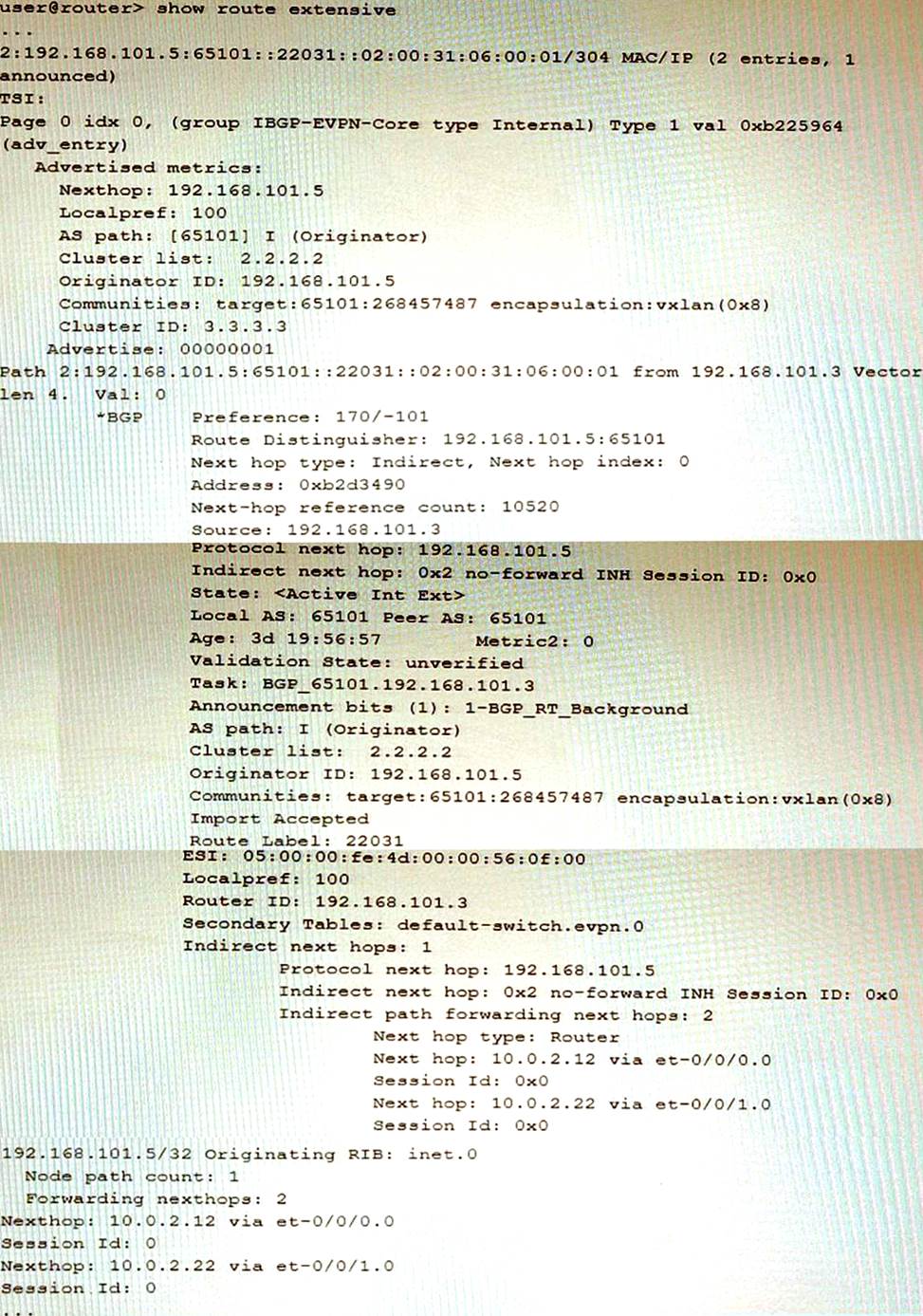

Referring to the exhibit, which two statements are true? (Choose two.)

This route is learned through EBGP

This is an EVPN Type-2 route.

The device advertising this route into EVPN is 192.168.101.5.

The devices advertising this route into EVPN are 10 0 2 12 and 10.0.2.22.

 Loading...

4. Exhibit

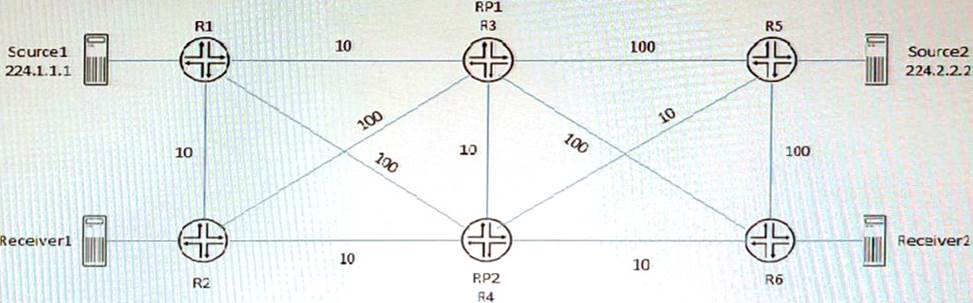

Referring to the exhibit, PIM-SM is configured on all routers, and Anycast-RP with Anycast-PIM is used for the discovery mechanism on RP1 and RP2. The interface metric values are shown for the OSPF area.

In this scenario, which two statements are correct about which RP is used? (Choose two.)

Source2 will use RP2 and Received will use RP2 for group 224.2.2.2.

Source2 will use RP1 and Receiver2 will use RP1 for group 224.2.2.2.

Source1 will use RP1 and Receiver1 will use RP1 for group 224.1.1.1.

Source1 will use RP1 and Receiver1 will use RP2 for group 224.1 1 1

 Loading...

5. You want to ensure that L1 IS-IS routers have only the most specific routes available from L2 IS-IS routers.

Which action accomplishes this task?

Configure the ignore-attached-bit parameter on all L2 routers.

Configure all routers to allow wide metrics.

Configure all routers to be L1.

Configure the ignore-attached-bit parameter on all L1 routers

 Loading...

6. Exhibit

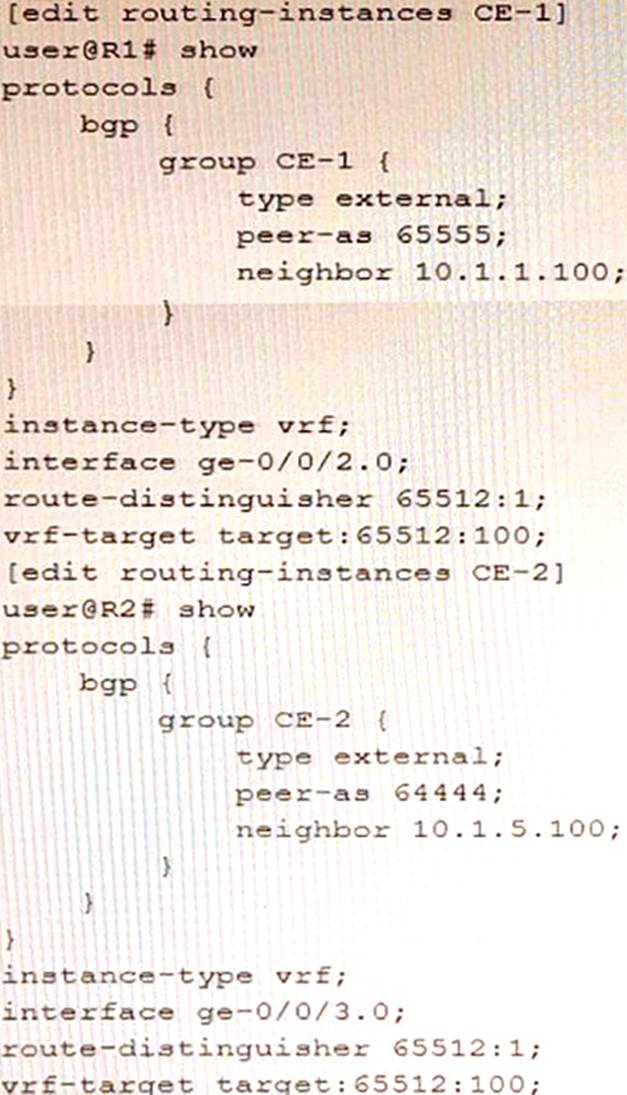

Referring to the exhibit, which statement is correct?

The vrf-target configuration will allow routes to be shared between CE-1 and CE-2.

The vrf-target configuration will stop routes from being shared between CE-1 and CE-2.

The route-distinguisher configuration will allow overlapping routes to be shared between CE-1 and CE-2.

The route-diatinguisher configuration will stop routes from being shared between CE-1 and CE-2.

 Loading...

7. Which two statements are correct about VPLS tunnels? (Choose two.)

LDP-signaled VPLS tunnels only support control bit 0.

LDP-signaled VPLS tunnels use auto-discovery to provision sites

BGP-signaled VPLS tunnels can use either RSVP or LDP between the PE routers.

BGP-signaled VPLS tunnels require manual provisioning of sites.

 Loading...

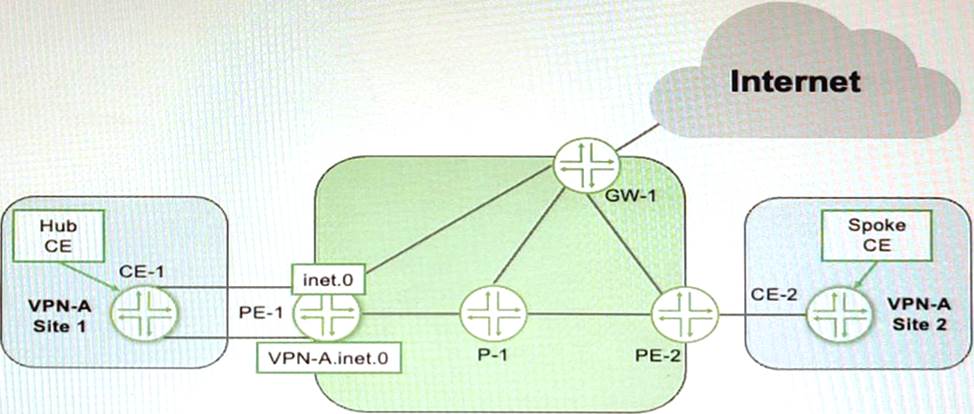

8. Exhibit





Referring to the exhibit, you must provide Internet access for VPN-A using CE-1 as the hub CE.

Which two statements are correct in this situation? (Choose two.)

You must use RIB groups to leak routes between the inet. o and vpn-a. inet. o tables.

RIB groups are not needed to leak routes between the inet. 0 and VPN―

inet. 0 tables,

Internet traffic from Site 2 takes the path of PE-2 -> PE-1 -> GW-1.

Internet traffic from Site 2 takes the path of PE-2 -> PE-1 -> CE-1 -> PE-1 -> GW-1.

 Loading...

9. Which two statements describe PIM-SM? (Choose two)

Routers with receivers send join messages to their upstream neighbors.

Routers without receivers must periodically prune themselves from the SP

Traffic is initially flooded to all routers and an S,G is maintained for each group

Traffic is only forwarded to routers that request to join the distribution tree.

 Loading...

10. Exhibit

user@Rl show configuration interpolated-profile { interpolate {

fill-level [ 50 75 drop―probability [ > }

class-of-service drop-profiles

];

20 60 ];

Which two statements are correct about the class-of-service configuration shown in the exhibit? (Choose two.)

The drop probability jumps immediately from 20% to 60% when the queue level reaches 75% full.

The drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to 75% full

To use this drop profile, you reference it in a scheduler.

To use this drop profile, you apply it directly to an interface.

 Loading...

Page 2 of 3

11. Exhibit.

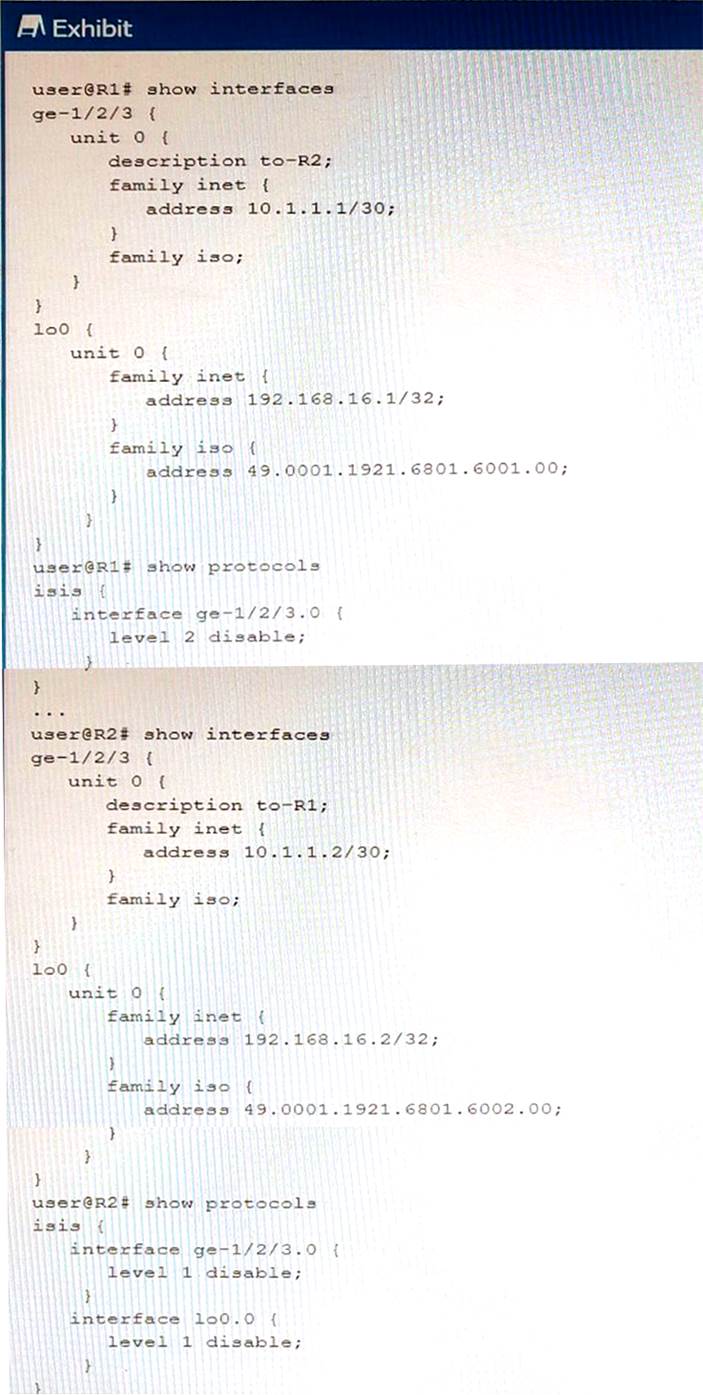

Referring to the exhib.t, what must be changed to establish a Level 1 adjacency between routers R1 and R2?

Change the level l disable parameter under the R1 protocols isis interface lo0.0 hierarchy to the level 2 disable parameter.

Remove the level i disable parameter under the R2 protocols isis interface loo.0 configuration hierarchy.

Change the level 1 disable parameter under the R2 protocols isis interface ge-1/2/3 .0 hierarchy to the level 2 disable parameter

Add IP addresses to the interface ge-l/2/3 unit 0 family iso hierarchy on both R1 and R2.

 Loading...

12. You are asked to protect your company's customers from amplification attacks. In this scenario, what is Juniper's recommended protection method?

ASN prepending

BGP FlowSpec

destination-based Remote Triggered Black Hole

unicast Reverse Path Forwarding

 Loading...

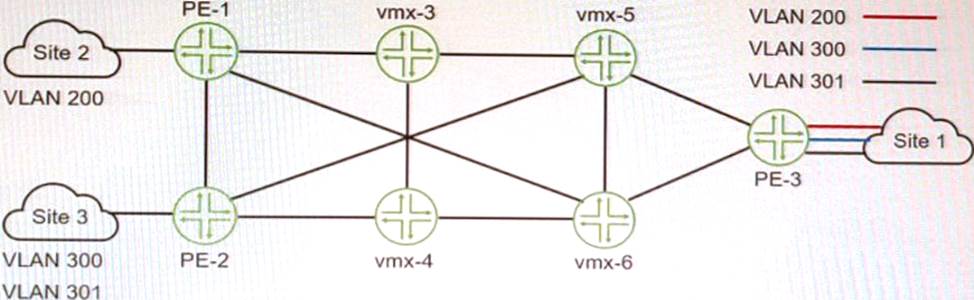

13. Exhibit





You want Site 1 to access three VLANs that are located in Site 2 and Site 3 The customer-facing interface on the PE-1 router is configured for Ethernet-VLAN encapsulation.

What is the minimum number of L2VPN routing instances to be configured to accomplish this task?

1

3

2

6

 Loading...

14. Exhibit

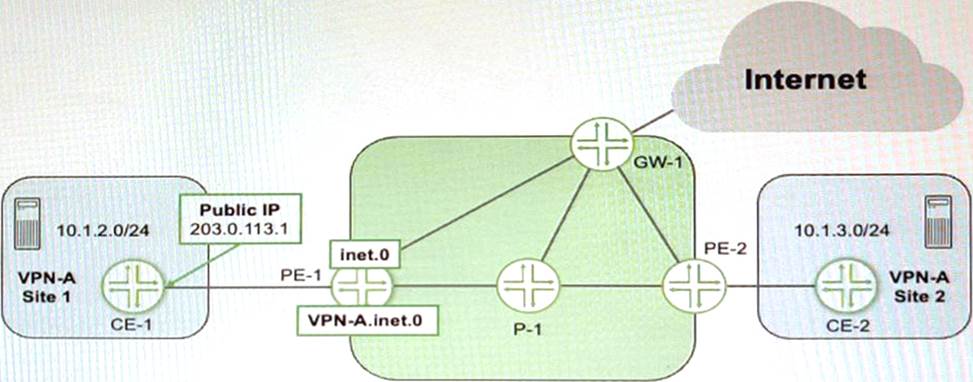

Referring to the exhibit, CE-1 is providing NAT services for the hosts at Site 1 and you must provide Internet access for those hosts

Which two statements are correct in this scenario? (Choose two.)

You must configure a static route in the main routing instance for the 10 1 2.0/24 prefix that uses the VPN-

inet.0 table as the next hop

You must configure a static route in the main routing instance for the 203.0.113.1/32 prefix that uses the VPN-

inet.0 table as the next hop.

You must configure a RIB group on PE-1 to leak a default route from the inet.0 table to the VPN-

inet.0 table.

You must configure a RIB group on PE-1 to leak the 10 1 2.0/24 prefix from the VPN-

inet.0 table to the inet.0 table.

 Loading...

15. Which two statements are correct about a sham link? (Choose two.)

It creates an OSPF multihop neighborship between two PE routers.

It creates a BGP multihop neighborship between two PE routers.

The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes

The PEs exchange Type 3 OSPF LSAs instead of Type 1 OSPF LSAs for the L3VPN routes.

 Loading...

16. You are configuring a BGP signaled Layer 2 VPN across your MPLS enabled core network. Your PE-2 device connects to two sites within the s VPN

In this scenario, which statement is correct?

By default on PE-2, the site's local ID is automatically assigned a value of 0 and must be configured to match the total number of attached sites.

You must create a unique Layer 2 VPN routing instance for each site on the PE-2 device.

You must use separate physical interfaces to connect PE-2 to each site.

By default on PE-2, the remote site IDs are automatically assigned based on the order that you add the interfaces to the site configuration.

 Loading...

17. You are a network architect for a service provider and want to offer Layer 2 services to your customers You want to use EVPN for Layer 2 services in your existing MPLS network.

Which two statements are correct in this scenario? (Choose two.)

Segment routing must be configured on all PE routers.

VXLAN must be configured on all PE routers.

EVPN uses Type 2 routes to advertise MAC address and IP address pairs learned using ARP snooping

EVPN uses Type 3 routes to join a multicast tree to flood traffic.

 Loading...

18. Exhibit





Referring to the exhibit, what do the brackets [ ] in the AS path identify?

They identify the local AS number associated with the AS path if configured on the router, or if AS path prepending is configured

They identify an AS set, which are groups of AS numbers in which the order does not matter

They identify that the autonomous system number is incomplete and awaiting more information from the BGP protocol.

They identify that a BGP confederation is being used to ensure that there are no routing loops.

 Loading...

19. Your organization manages a Layer 3 VPN for multiple customers. To support advanced route than one BGP community on advertised VPN routes to remote PE routers.

Which routing-instance configuration parameter would support this requirement?

vrf-export

vrf-import

vrf-target export

vrf-target import

 Loading...

20. Exhibit

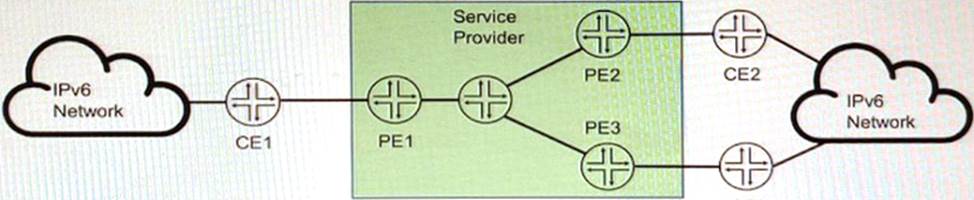

You are running a service provider network and must transport a customer's IPv6 traffic across your IPv4-based MPLS network using BGP You have already configured mpis ipv6-tunneling on your PE routers.

Which two statements are correct about the BGP configuration in this scenario? (Choose two.)

You must configure family inet6 labcled-unicast between PE routers.

You must configure family inet6 unicaat between PE and CE routers.

You must configure family inet6 add-path between PE and CE routers.

You must configure family inet6 unicast between PE routers

 Loading...

Page 3 of 3

21. Exhibit

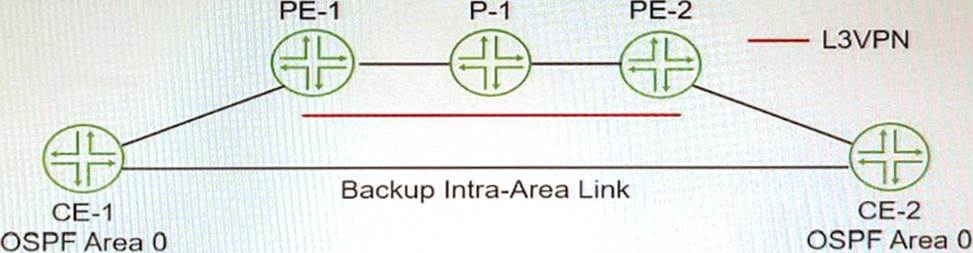

You must ensure that the VPN backbone is preferred over the back door intra-area link as long as the VPN is available. Referring to the exhibit, which action will accomplish this task?

Configure an import routing policy on the CE routers that rejects OSPF routes learned on the backup intra-area link.

Enable OSPF traffic-engineering.

Configure the OSPF metric on the backup intra-area link that is higher than the L3VPN link.

Create an OSPF sham link between the PE routers.

 Loading...
