1. In addition to the default ADOMs, an administrator has created a new ADOM named Training for FortiGate devices. The administrator authorized the FortiGate device on FortiManager using the Fortinet Security Fabric.

Given the administrator's actions, which statement correctly describes the expected result?

The FortiManager administrator must add the authorized device to the Training ADOM using the Add Device wizard only.

The authorized FortiGate will be automatically added to the Training ADO

The authorized FortiGate will appear in the root ADO

The authorized FortiGate can be added to the Training ADOM using FortiGate Fabric Connectors.

 Loading...

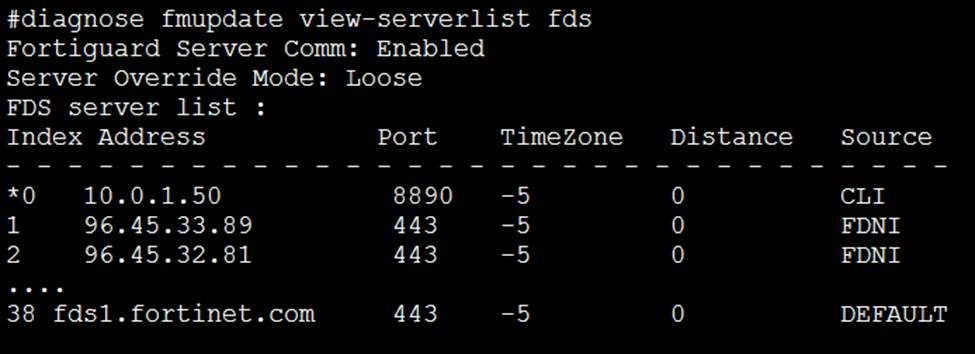

2. View the following exhibit:





How will FortiManager try to get updates for antivirus and IPS?

From the list of configured override servers with ability to fall back to public FDN servers

From the configured override server list only

From the default server fdsl.fortinet.com

From public FDNI server with highest index number only

 Loading...

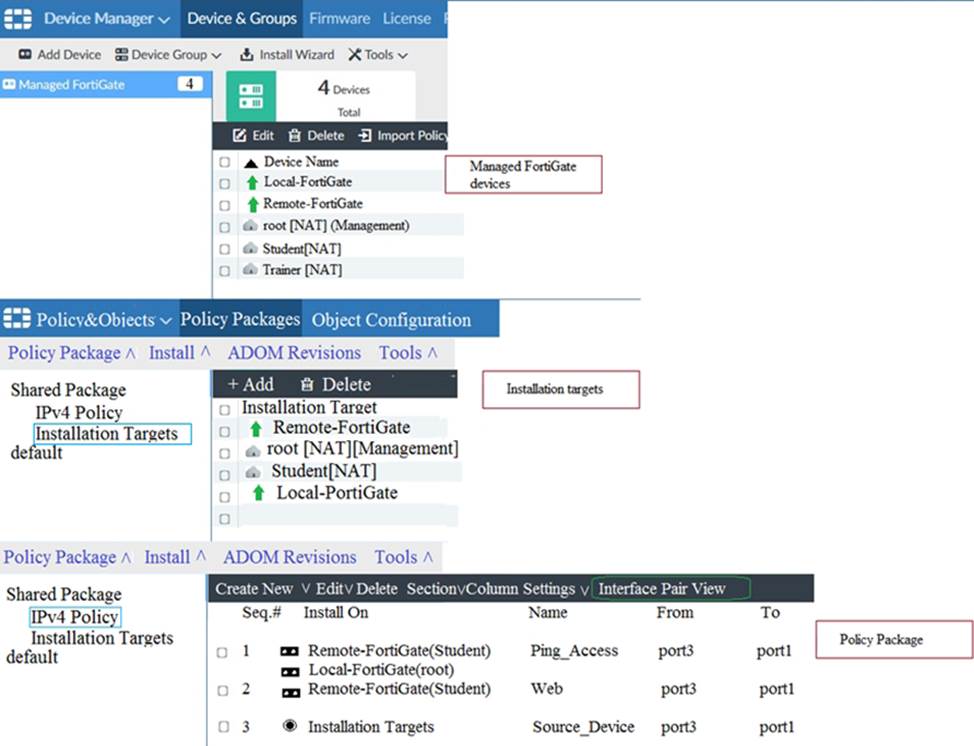

3. View the following exhibit.





Given the configurations shown in the exhibit, what can you conclude from the installation targets in the Install On column?

The Install On column value represents successful installation on the managed devices

Policy seq#3 will be installed on all managed devices and VDOMs that are listed under Installation Targets

Policy seq#3 will be installed on the Trainer[NAT] VDOM only

Policy seq#3 will be not installed on any managed device

 Loading...

4. Refer to the exhibit.





An administrator has created a firewall address object, Training which is used in the Local-FortiGate policy package.

When the installation operation is performed, which IP/Netmask will be installed on the Local-FortiGate, for the Training firewall address object?

192.168.0.1/24

10.200. 1. 0/24

It will create a firewall address group on Local-FortiGate with 192.168.0.1/24 and 10.0. 1. 0/24 object values.

Local-FortiGate will automatically choose an IP/Netmask based on its network interface settings.

 Loading...

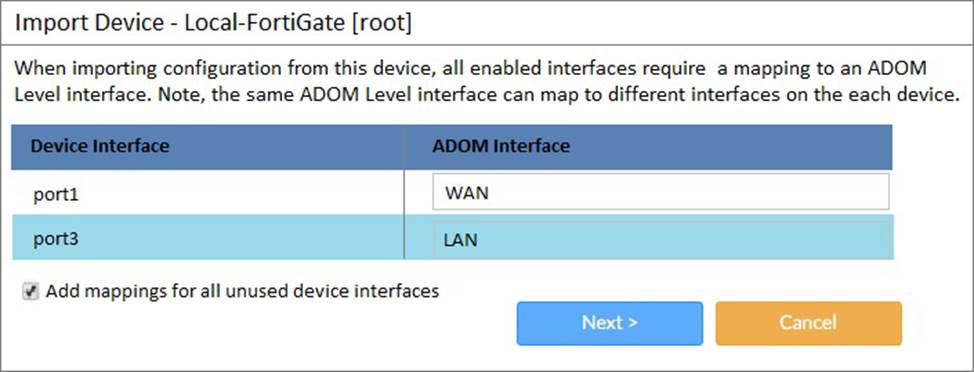

5. View the following exhibit:





An administrator used the value shown in the exhibit when importing a Local-FortiGate into FortiManager .

What name will be used to display the firewall policy for port1?

port1 on FortiGate and WAN on FortiManager

port1 on both FortiGate and FortiManager

WAN zone on FortiGate and WAN zone on FortiManager

WAN zone on FortiGate and WAN interface on FortiManager

 Loading...

6. What will be the result of reverting to a previous revision version in the revision history?

It will install configuration changes to managed device automatically

It will tag the device settings status as Auto-Update

It will generate a new version ID and remove all other revision history versions

It will modify the device-level database

 Loading...

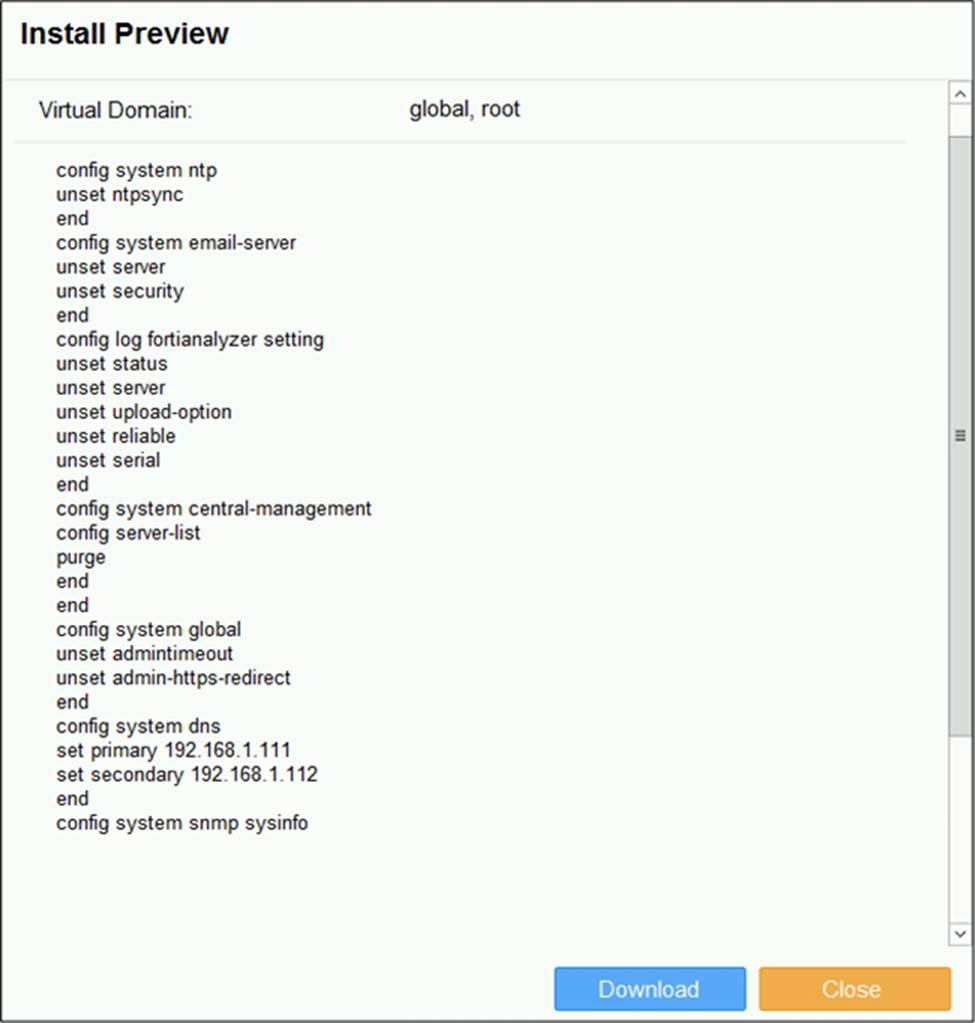

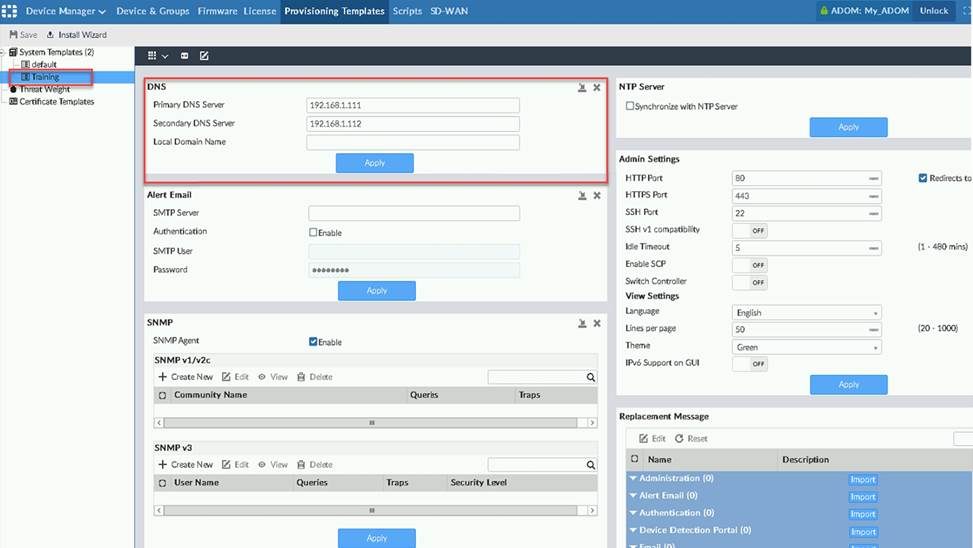

7. Refer to the exhibits.

Exhibit one.





Exhibit two.





An administrator created a new system template named Training with two new DNS addresses on FortiManager. During the installation preview stage, the administrator notices that many unset commands need to be pushed.

What can be the main reason for these unset commands?

The DNS addresses in the default system settings are the same as the Training system template

The Training system template has other default settings

The ADOM is locked by another administrator

The Training system template does not have assigned devices

 Loading...

8. Which two statements regarding device management on FortiManager are true? (Choose two.)

FortiGate devices in HA cluster devices are counted as a single device.

FortiGate in transparent mode configurations are not counted toward the device count on FortiManager.

FortiGate devices in an HA cluster that has five VDOMs are counted as five separate devices.

The maximum number of managed devices for each ADOM is 500.

 Loading...

9. What will happen if FortiAnalyzer features are enabled on FortiManager?

FortiManager will keep all the logs and reports on the FortiManager.

FortiManager will enable ADOMs to collect logs automatically from non-FortiGate devices.

FortiManager will install the logging configuration to the managed devices

FortiManager can be used only as a logging device.

 Loading...

10. Which of the following statements are true regarding reverting to previous revision version from the revision history? (Choose two.)

To push these changes to a managed device, it required an install operation to the managed FortiGate.

Reverting to a previous revision history will generate a new version ID and remove all other history versions.

Reverting to a previous revision history will tag the device settings status as Auto-Update.

It will modify device-level database

 Loading...

Page 2 of 2

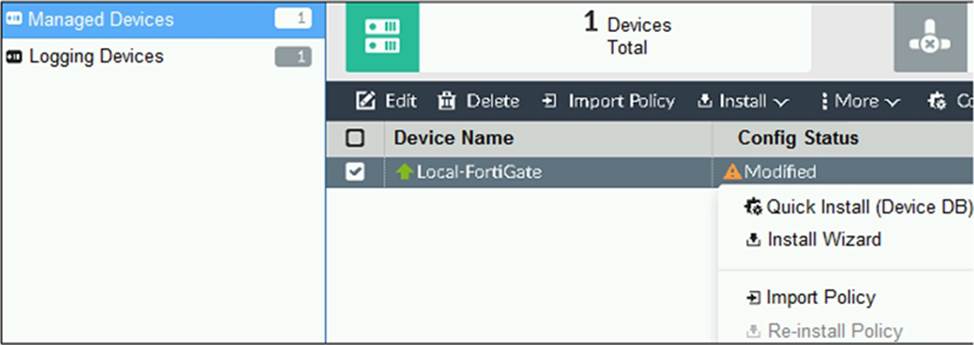

11. Refer to the exhibit.





You are using the Quick Install option to install configuration changes on the managed FortiGate.

Which two statements correctly describe the result? (Choose two.)

It will not create a new revision in the revision history

It installs device-level changes to FortiGate without launching the Install Wizard

It cannot be canceled once initiated and changes will be installed on the managed device

It provides the option to preview configuration changes prior to installing them

 Loading...

12. Which two settings are required for FortiManager Management Extension Applications (MEA)? (Choose two.)

When you configure MEA, you must open TCP or UDP port 540.

You must open the ports to the Fortinet registry

You must create a MEA special policy on FortiManager using the super user profile

The administrator must have the super user profile.

 Loading...

13. An administrator is replacing a device on FortiManager by running the following command:

execute device replace sn .

What device name and serial number must the administrator use?

Device name and serial number of the original device.

Device name and serial number of the replacement device.

Device name of the replacement device and serial number of the original device.

Device name of the original device and serial number of the replacement device.

 Loading...

14. An administrator would like to authorize a newly-installed AP using AP Manager .

What steps does the administrator need to perform to authorize an AP?

Authorize the new AP using AP Manager and wait until the change is updated on the FortiA

Changes to the AP's state do not require installation.

Changes to the AP's state must be performed directly on the managed FortiGate.

Authorize the new AP using AP Manager and install the policy package changes on the managed FortiGate.

Authorize the new AP using AP Manager and install the device level settings on the managed FortiGate.

 Loading...

15. An administrator would like to create an SD-WAN using central management .

What steps does the administrator need to perform to create an SD-WAN using central management?

First create an SD-WAN firewall policy, add member interfaces to the SD-WAN template and create a static route

You must specify a gateway address when you create a default static route

Remove all the interface references such as routes or policies

Enable SD-WAN central management in the ADOM, add member interfaces, create a static route and SDWAN firewall policies.

 Loading...

16. An administrator with the Super_User profile is unable to log in to FortiManager because of an authentication failure message.

Which troubleshooting step should you take to resolve the issue?

Make sure FortiManager Access is enabled in the administrator profile

Make sure Offline Mode is disabled

Make sure the administrator IP address is part of the trusted hosts.

Make sure ADOMs are enabled and the administrator has access to the Global ADOM

 Loading...

17. Which configuration setting for FortiGate is part of an ADOM-level database on FortiManager?

NSX-T Service Template

Security profiles

SNMP

Routing

 Loading...
