Study Online JN0-649 Exam Dumps to Pass

JN0-649 dumps questions can help you identify areas where you need to focus your studies. As you answer questions, you will be able to see which topics you are comfortable with and which ones you need to spend more time studying. Juniper JN0-649 dumps questions provide realistic practice for the certification exam. JN0-649 dumps are designed to simulate the actual exam environment, and they will give you a chance to practice answering questions under time pressure. Study free Juniper JN0-649 online dumps below.

Page 1 of 2

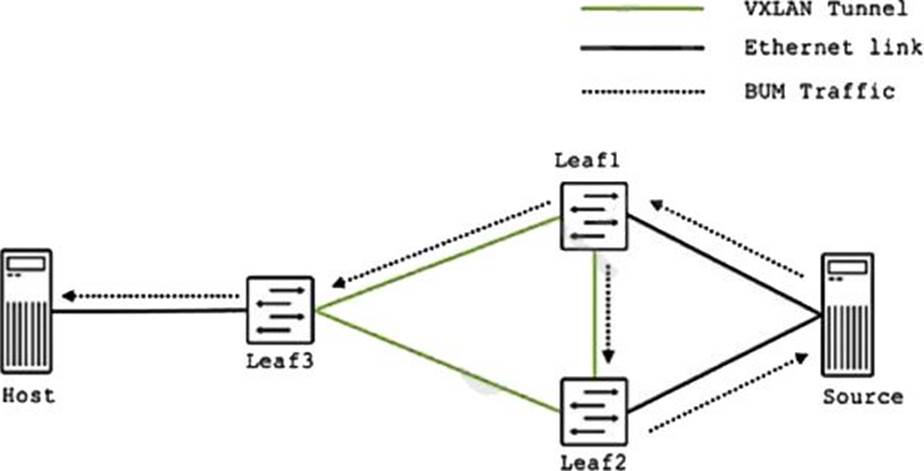

1. You are troubleshooting an EVPN-VXLAN IP fabric and observe the loop shown in the exhibit.





Which two steps would you take to further troubleshoot this problem? (Choose two.)

Verify that the same ESI is configured on the link from the host and that it matches the source.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 4 routes are present.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 3 routes are present.

Verify that the same ESI is configured on the two links from the source.

 Loading...

2. You are using 802.1X authentication in your network to secure all ports. You have a printer that does not support 802.1X and you must ensure that traffic is allowed to and from this printer without authentication.

In this scenario, what will satisfy the requirement?

MAC filtering

MACsec

static MAC bypass

MAC RADIUS

 Loading...

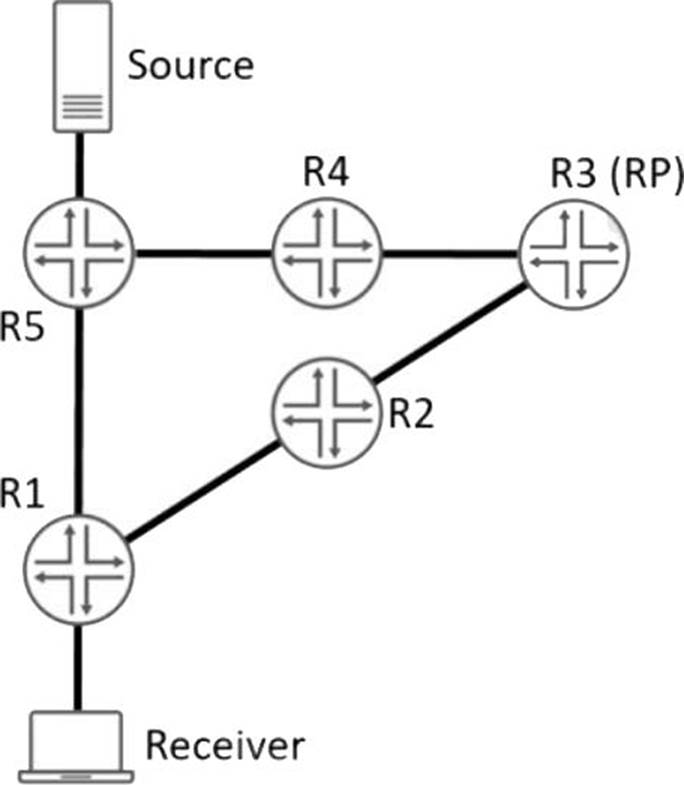

3. Referring to the exhibit, a PIM-SM network is set up to enable communication between multicast devices.





Which two statements are true? (Choose two.)

Before the formation of the rendezvous-point tree, a join message is sent from R1 to R3.

Before the formation of the rendezvous-point tree, an IGMP is sent from the Receiver to R1.

Before the formation of the rendezvous-point tree, an IGMP is sent from the Source to R5.

Before the formation of the rendezvous-point tree, a join message is sent from R1 to R5.

 Loading...

4. Your network is multihomed to two ISPs. The BGP sessions are established; however, the ISP peers are not receiving any routes.

Which two statements are correct about troubleshooting your configuration? (Choose two.)

Verify the import policies on your router.

Verify that the BGP routes are active in your routing table.

Verify the export policies on your router.

Verity that the multihop settings are configured on your router.

 Loading...

5. Your network has an unmanaged switch between the hosts and your EX Series switch.

After the traffic enters the EX Series switch, each host must be on a separate VLAN.





How would you accomplish this task?

Configure an input firewall filter on interface ge-0/0/3 to match the source MAC or IP address of the hosts to assign the VLANs.

Configure an output firewall filter on interface ge-0/0/1 to match the destination MAC or IP address of the hosts to assign the VLANs.

Configure interface ge-0/0/3 to a mode trunk to assign the VLANs.

Configure VSTP on interface ge-0/0/1 to assign the VLANs.

 Loading...

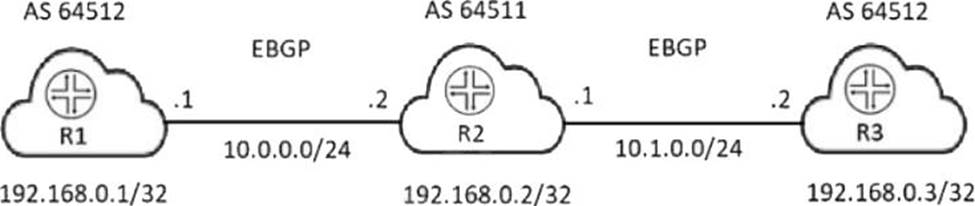

6. You are asked to establish full connectivity between all devices in the BGP network.





Referring to the exhibit, which two configuration changes will allow BGP route advertisements? (Choose two.)

On R2, include the loops 2 statement at the [edit protocols bgp family inet unicast] hierarchy.

On R1 and R3, include the loops 2 statement at the [edit protocols bgp family inet unicast] hierarchy.

On R1 and R3, include the advertise-peer-as statement at the [edit protocols bgp group external] hierarchy.

On R2, include the advertise-peer-as statement at the [edit protocols bgp group external] hierarchy.

 Loading...

7. You are asked to implement fault tolerant RPs in your multicast network.

Which two solutions would accomplish this behavior? (Choose two.)

Use BFD with statically defined RPs.

Use MSDP with statically defined RPs.

Use anycast PIM with statically defined RPs.

Use IGMPv3 with statically defined RPs.

 Loading...

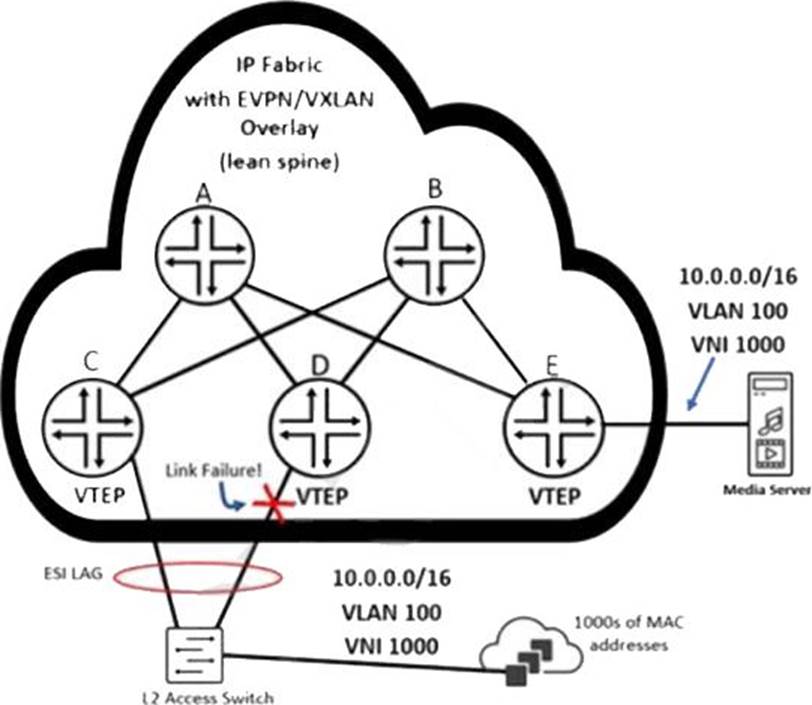

8. Referring to the exhibit, how will router E quickly learn that the remote MAC addresses are no longer reachable through the router attached to the failed link?

Router E receives Type 2 withdrawal messages from router

Router E receives Type 1 withdrawal messages from router

Router E receives Type 1 withdrawal messages from router

Router E receives Type 2 withdrawal messages from router

 Loading...

9. You are asked to configure 802.1X on your access ports to allow only a single device to authenticate.

In this scenario, which configuration would you use?

single supplicant mode

multiple supplicant mode

single-secure supplicant mode

MAC authentication mode

 Loading...

10. You are asked to configure an 802.1X solution that supports dynamic VLAN assignment.

In this scenario, which two modes support using vendor-specific attributes (VSAs)? (Choose two.)

static MAC bypass mode

single-secure supplicant mode

multiple supplicant mode

single supplicant mode

 Loading...

Page 2 of 2

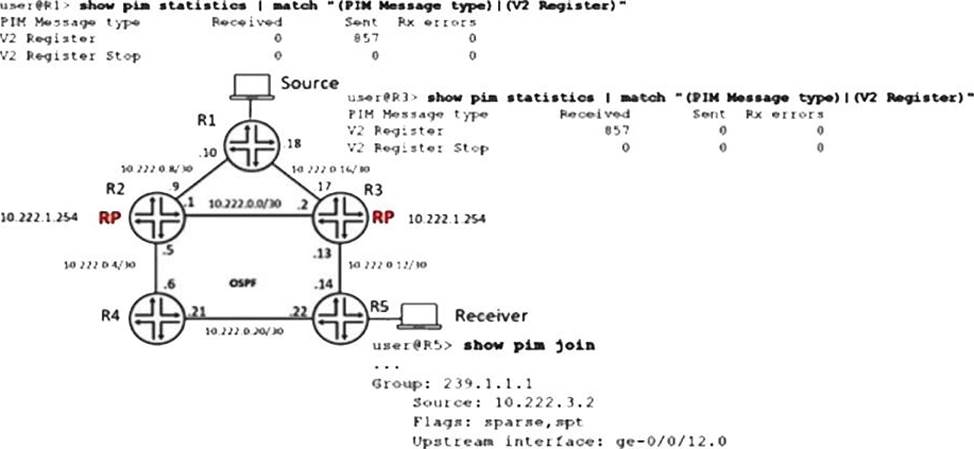

11. Referring to the exhibit, anycast RP is implemented to ensure multicast service availability.





The source is currently sending multicast traffic using group 239.1.1.1 and R3 is receiving PIM register messages, but R2 does not have active source information.

In this scenario, what are two methods to receive the active source information on R2? (Choose two.)

Configure an RP set in PIM on R1, allowing R1 to forward PIM register messages to R2 and R3 in the set.

Configure an MSDP protocol between R2 and R3.

Configure an RP set in PIM on R2 and R3, allowing the RPs to forward PIM register messages to the other RPs in the set.

Configure an MSDP protocol between R1 and R2.

 Loading...

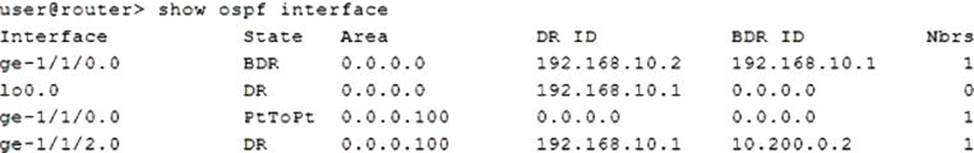

12. Which two statements are correct regarding the behavior shown in the exhibit? (Choose two.)

The ge-1/1/0 interface is configured as secondary for Area 0.

The router is an AB

The router is not an AB

The ge-1/1/0 interface is configured as secondary for Area 100.

 Loading...

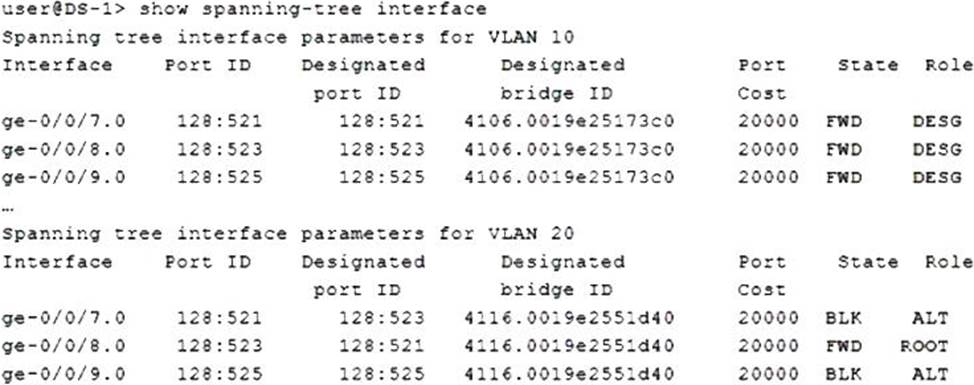

13. Referring to the exhibit, which two statements are correct? (Choose two.)

BPDUs from the root bridge for VLAN 10 have been received on the ge-0/0/7.0 interface.

DS-1 is the root bridge for VLAN 10.

BPDUs from the root bridge for VLAN 20 have been received on the ge-0/0/7.0 interface.

Default VSTP bridge priority values are configured.

 Loading...

14. You are deploying IP phones in your enterprise networks. When plugged in, the IP phones must automatically negotiate the power requirements for the new connection with the EX Series switches.

In this scenario, which protocol should be used to enable this behavior?

CDP

MP-BGP

LLDP-MED

LLDP

 Loading...

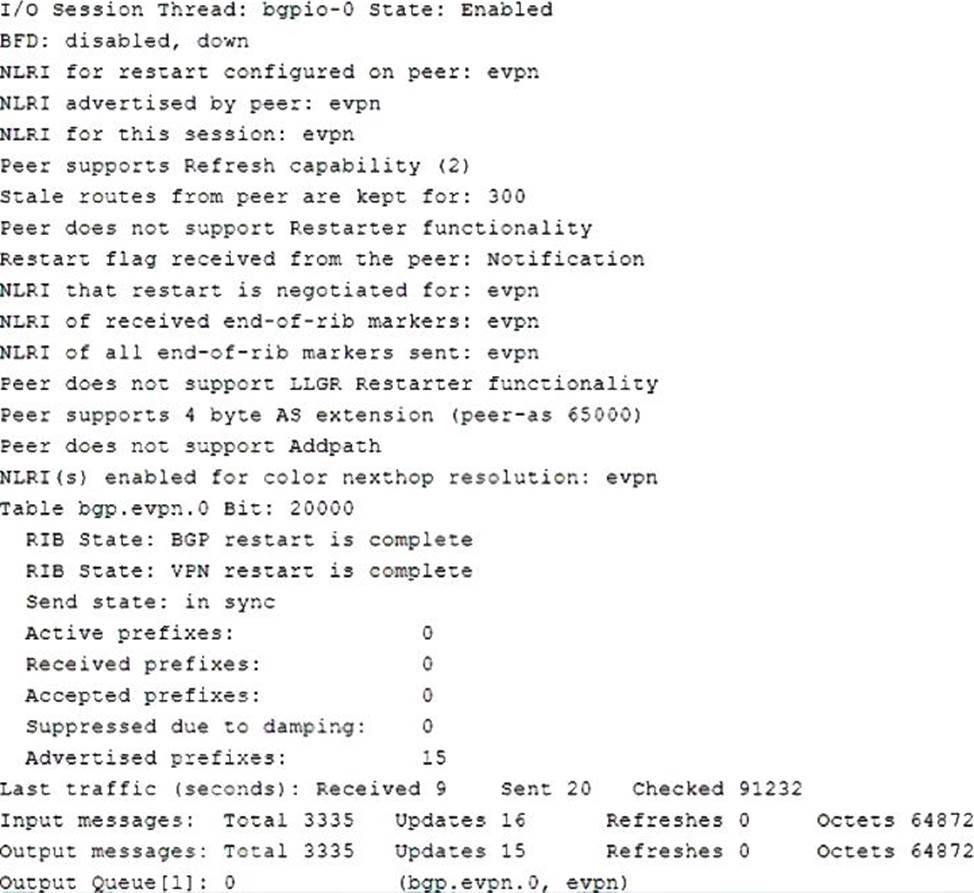

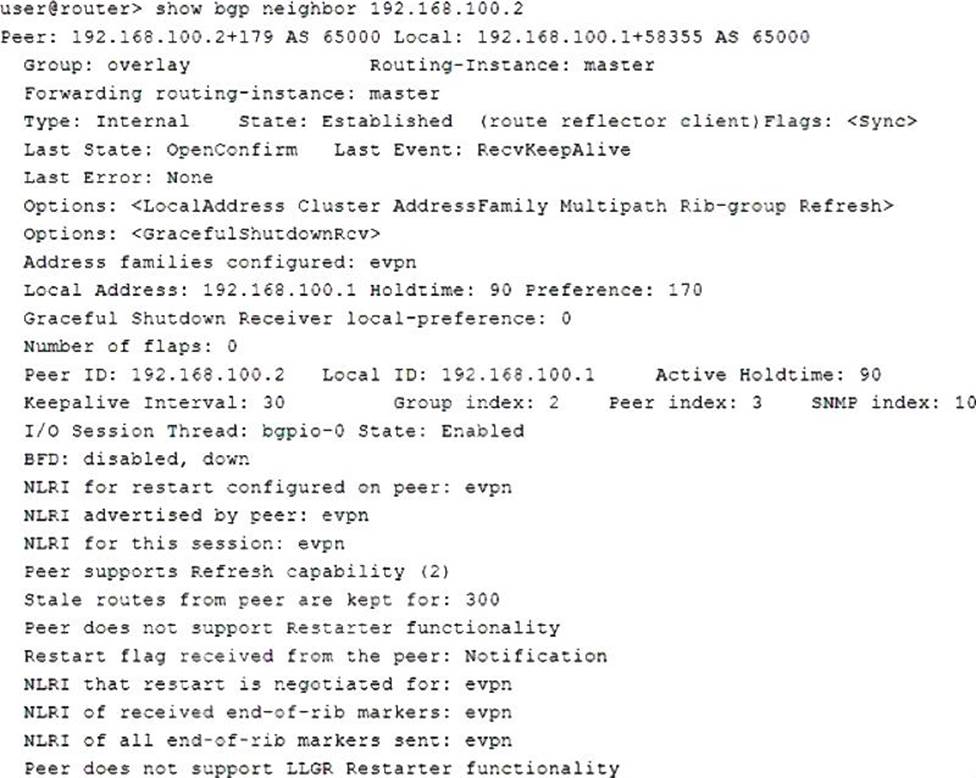

15. 1.Referring to the exhibit, which two statements are correct? (Choose two.)

The BGP neighbor can advertise L3 VPN related routes.

The BGP neighbor cannot advertise EVPN related routes.

The BGP neighbor can advertise EVPN related routes.

The BGP neighbor cannot advertise L3 VPN related routes.

 Loading...

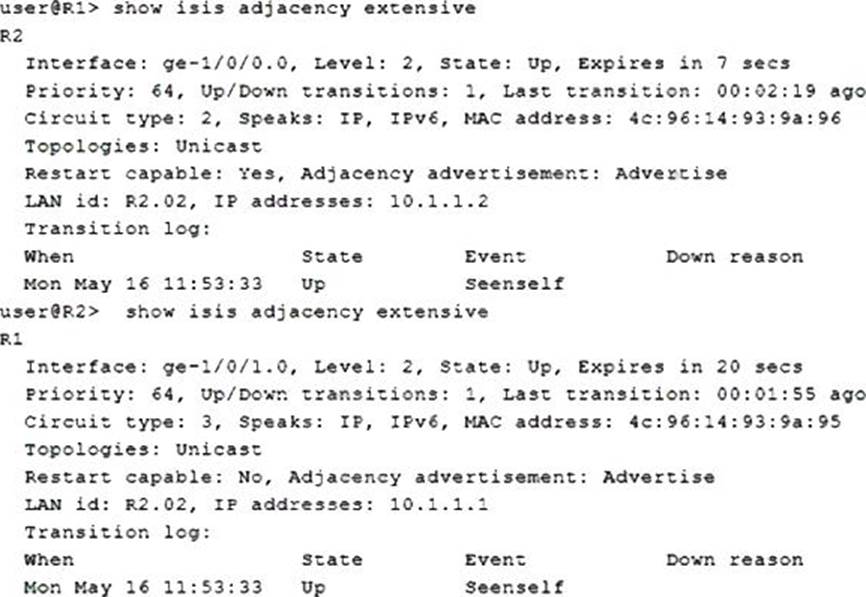

16. Referring to the outputs shown in the exhibit, which two statements are correct about the IS-IS adjacency? (Choose two.)

R1 is configured to participate in both Level 1 and Level 2.

R2 is configured to participate in both Level 1 and Level 2.

R1 is configured to participate in Level 2 only.

R2 is configured to participate in Level 2 only.

 Loading...

17. A Layer 2 connection does not expend across data centers. The IP subnet in a Layer 2 domain is confined within a single data center.

Which EVPN route type is used to communicate prefixes between the data centers?

Type 1

Type 2

Type 4

Type 5

 Loading...

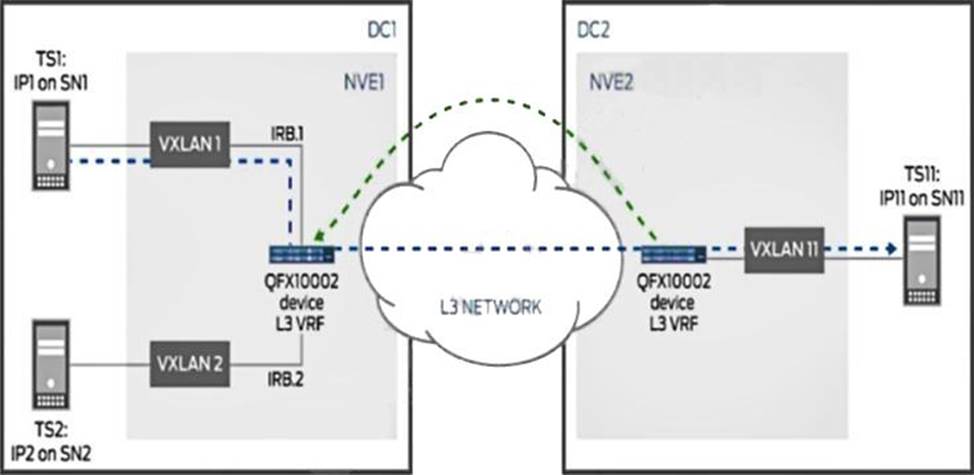

18. The connection between DC1 and DC2 is routed as shown in the exhibit.





In this scenario, which statement is correct?

The border devices must be able to perform Layer 3 routing and provide IRB functionality.

L3VPN must be enabled to advertise reachability.

An IP prefix route provides encoding for intra-subnet forwarding.

Type 2 and Type 5 routes will be exchanged between DC1 and DC2.

 Loading...

19. You want to create an OSPF area that only contains intra-area route information in the form of Type 1 and Type 2 LSAs.

In this scenario, which area is needed to accomplish this task?

totally non-to-stubby area

totally stubby area

stub area

non-to-stubby area

 Loading...

20. Which statement is correct about IS-IS?

IS-IS uses areas and an autonomous system.

Level 1/2 routers automatically inject a default route to the nearest Level 1 router.

Level 2 routers must share the same area address.

Level 1 routers route traffic between autonomous systems.

 Loading...
